Description

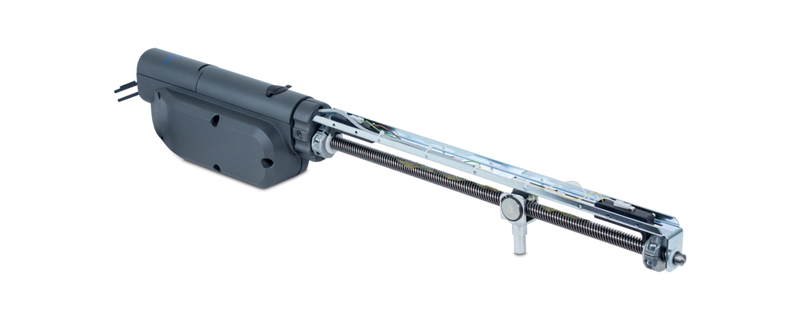

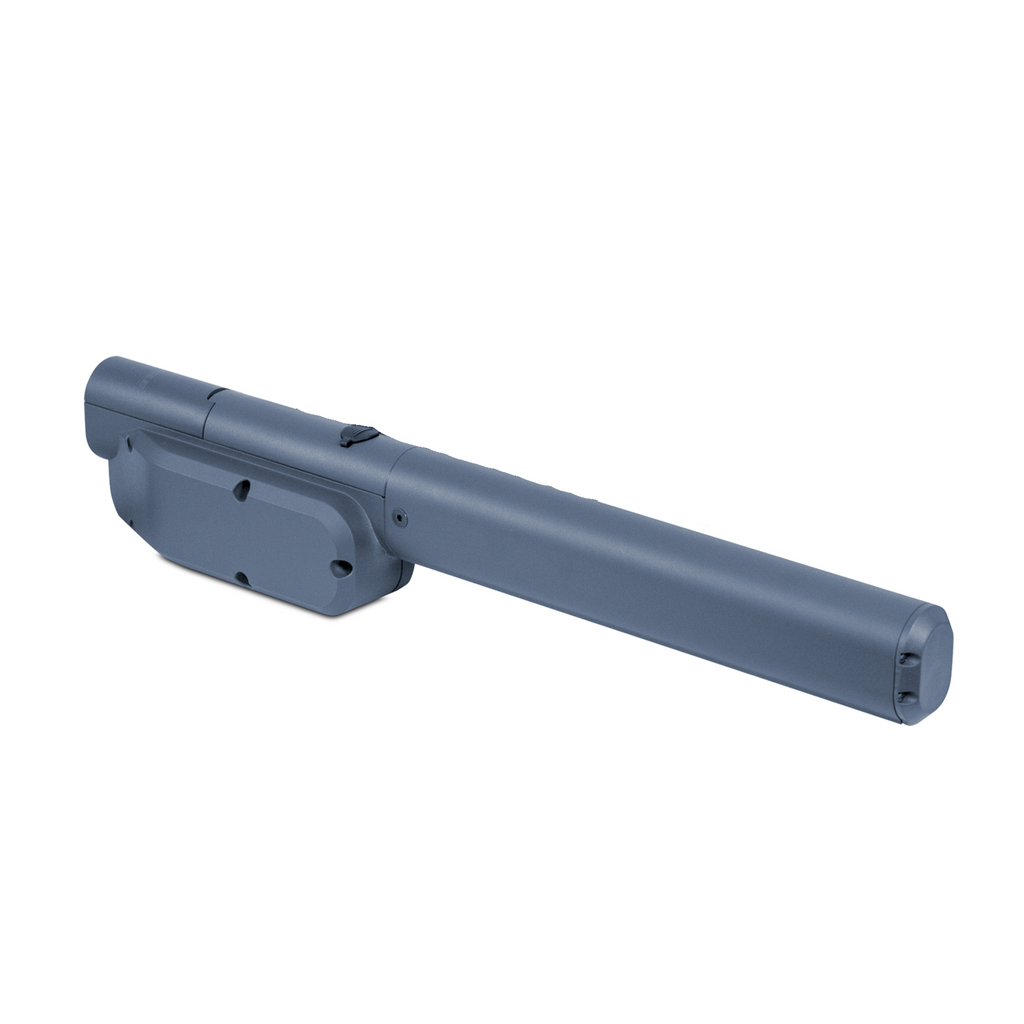

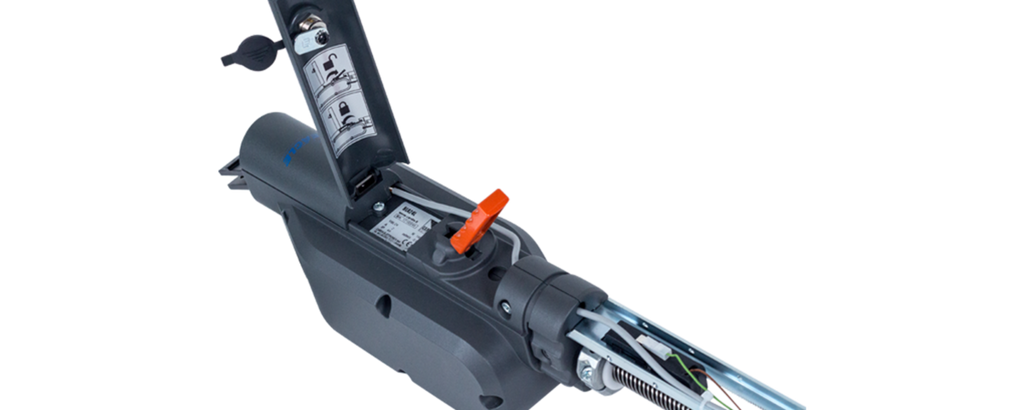

The Eagle-X9 residential/ light commercial swing gate operator provides quiet and smooth operation along with an installer friendly set up. Single or dual, this operator can accommodate up to 16' & 800 lbs. swing gate. Runs 115 VAC @ 60 Hz - 4 amps per Arm.

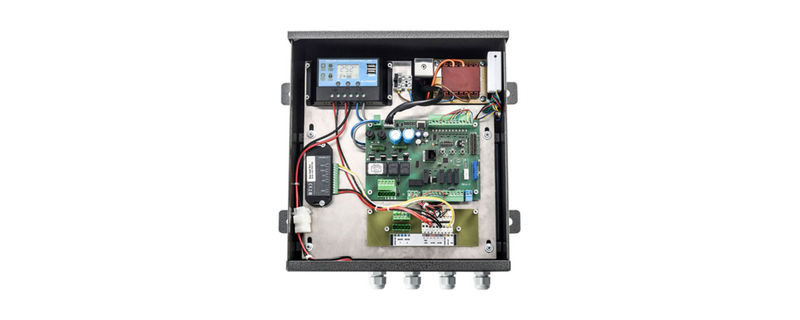

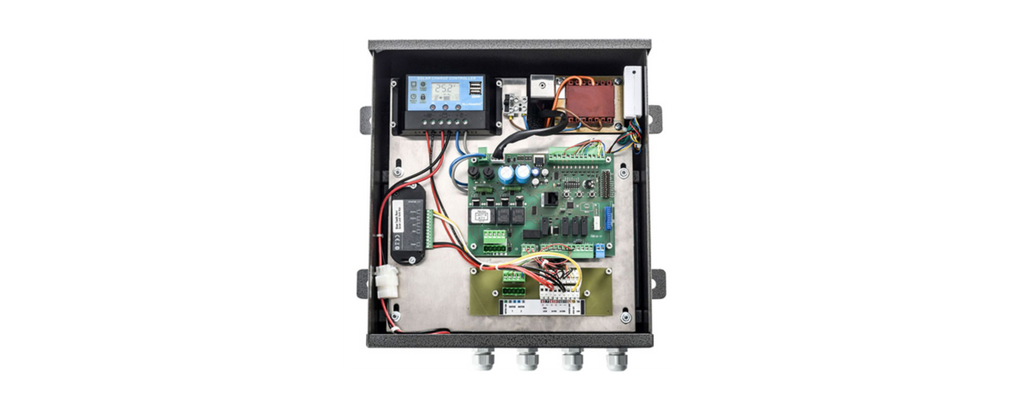

Equipped with X9 board.
- 7 Dip switch selector for different set ups.
- 12 Dip switch selector for installing accessories.
- Automatic limit set up programming button.
- 3 button P/P button station and learn button.
- 14 Color coated and numbered pin terminal strip for installer friendly accessory connections.
- Built in Eagle Chrome rolling code receiver.
Comes in 2 models:

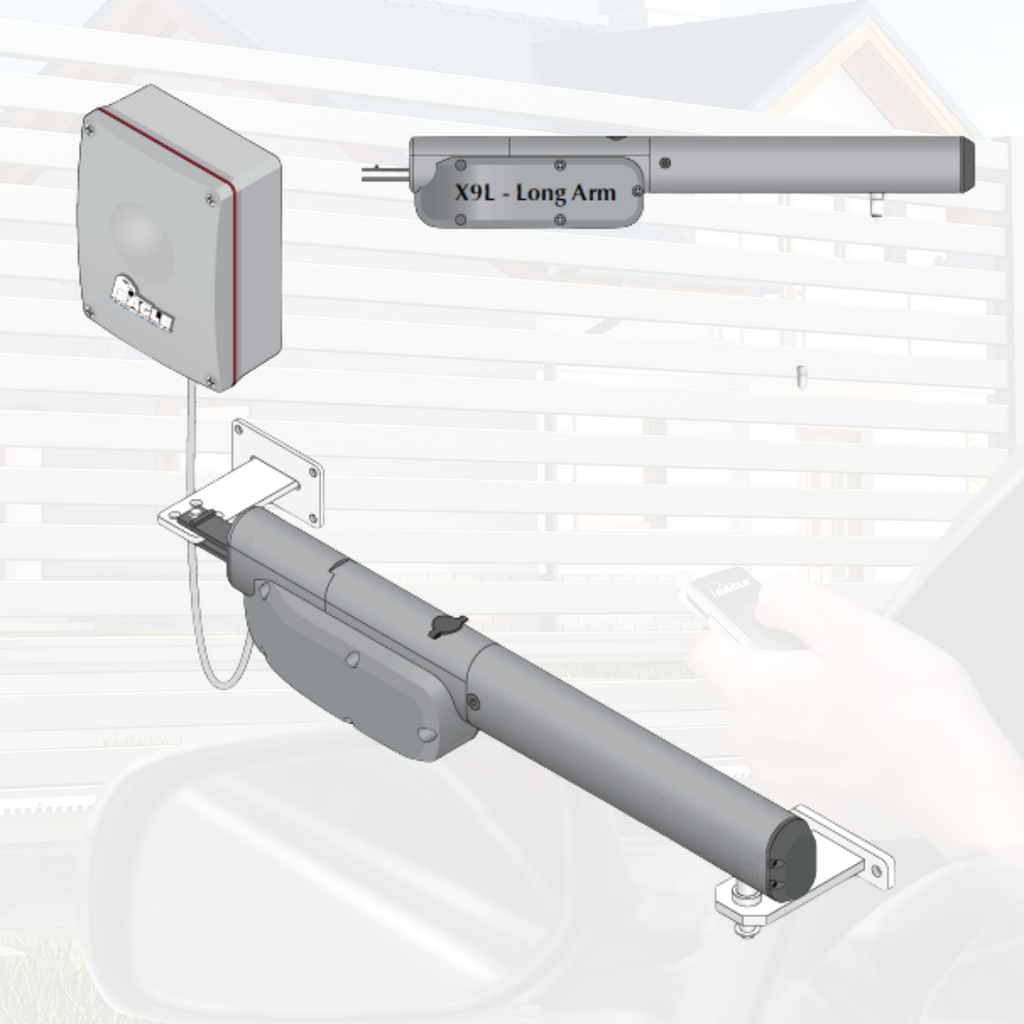

Eagle-X9L Long
16′ & 800 lbs. capacity; Single Electro-Mechanical Long Swing Arm Complete

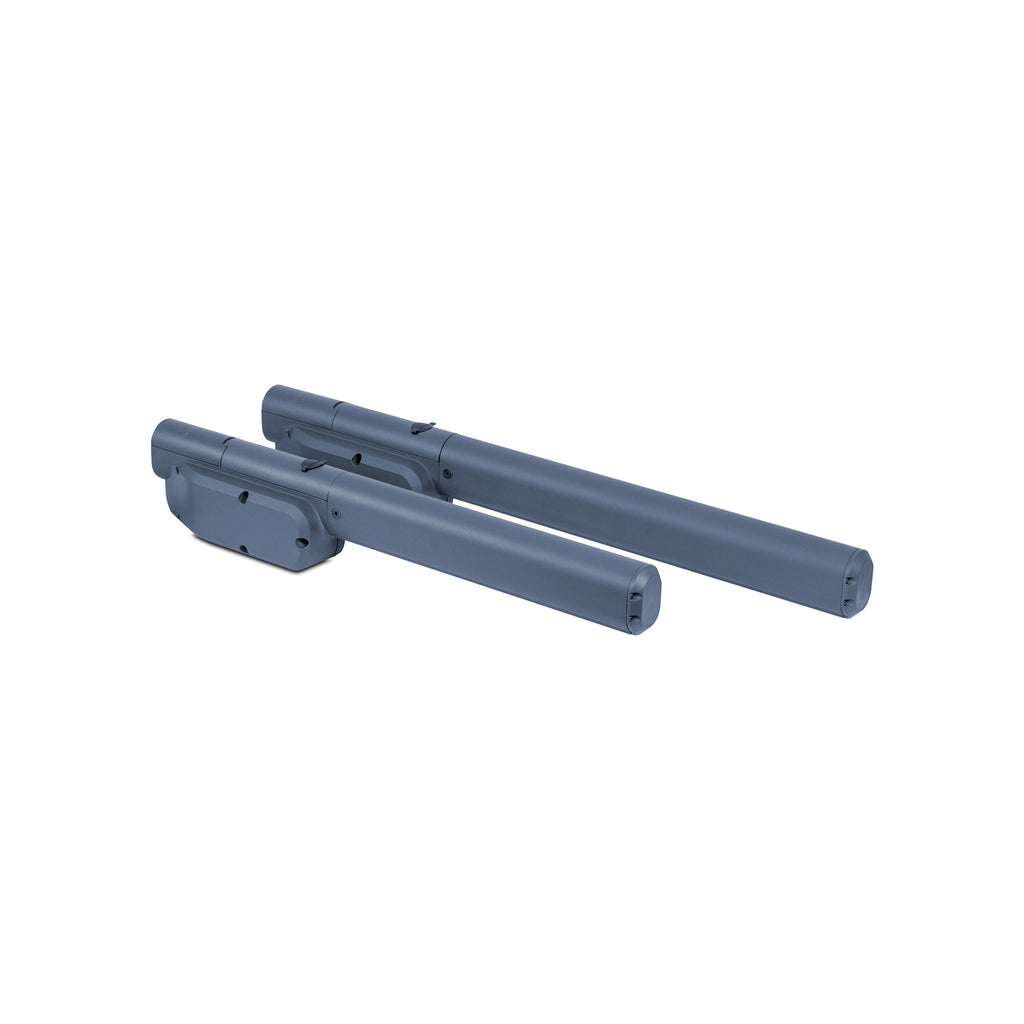

Eagle-X9LD Long-Dual
16′ & 800 lbs. capacity; Single Electro-Mechanical Long Swing Arm Complete
Downloads
-
Spec Sheet
-
Installation Manual
